The framing square, which is a right-angled isosceles triangle, was created by Albert J. Swanson in 1925. Initially, it was used for quickly and accurately measuring beams for roofing. Today, the framing square has become an essential aid for carpenters in a variety of projects, whether large or small. This tool features special markings that simplify the process of assembling materials and accurately cutting them. Abroad, the framing square is often referred to as a tool that can significantly save time. You can use it not only as a ruler but also for measuring various dimensions needed in construction.
Part 1

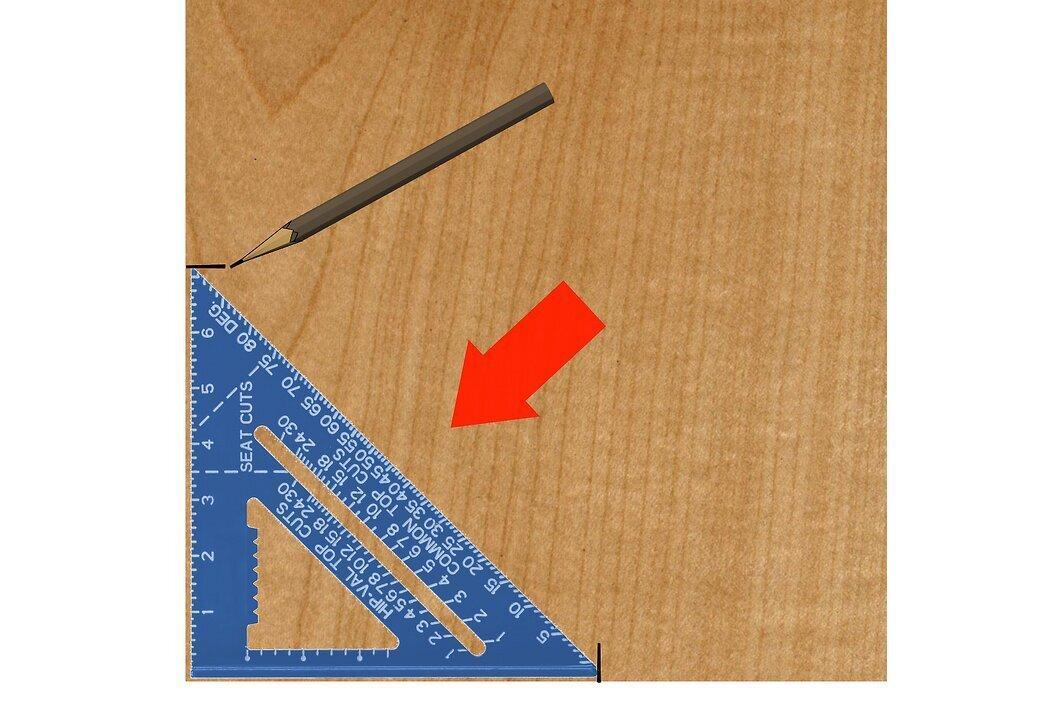

Step 1. Mark Perpendiculars.
Start by marking perpendiculars. Use the framing square to draw lines on the wood that will be at a right angle to the edge of the material. Hold the tool flush against the edge of the board, and the pointed end of the square will help you accurately mark the line's position. Draw a straight line using the square part of the square. This is particularly useful, for example, when installing floor joists.

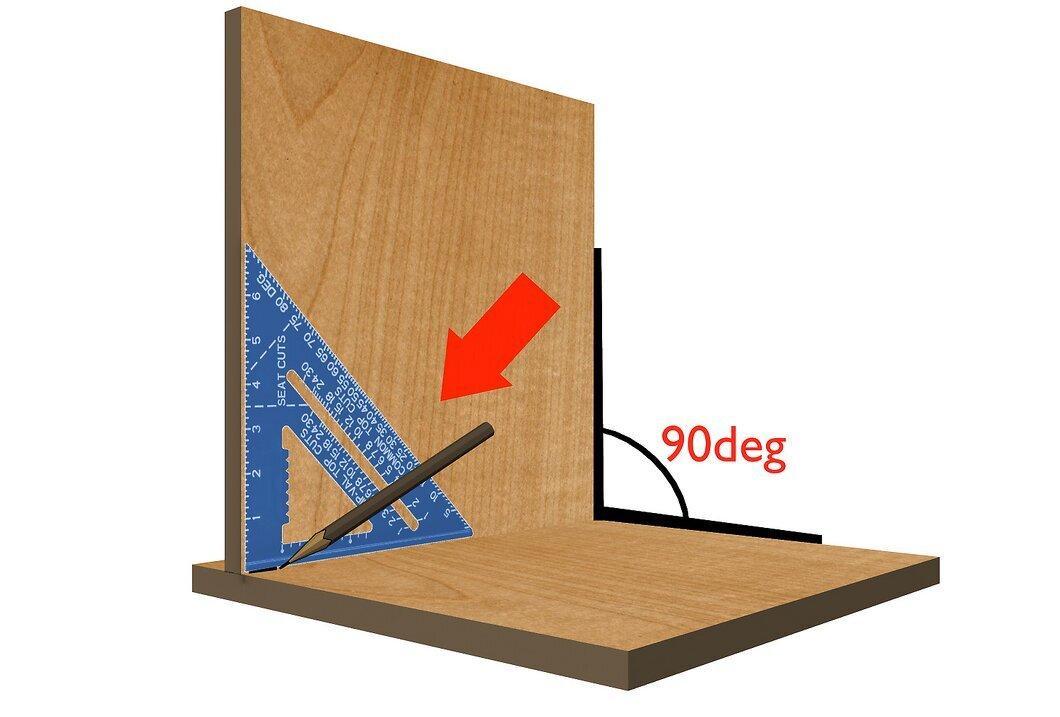

Step 2. Join Two Pieces of Wood at a 90-Degree Angle.
Attach two pieces of wood at a right angle. When assembling or constructing cabinets, boxes, or other furniture pieces, place the framing square against the wood parts to accurately measure the necessary angles for subsequent material processing.

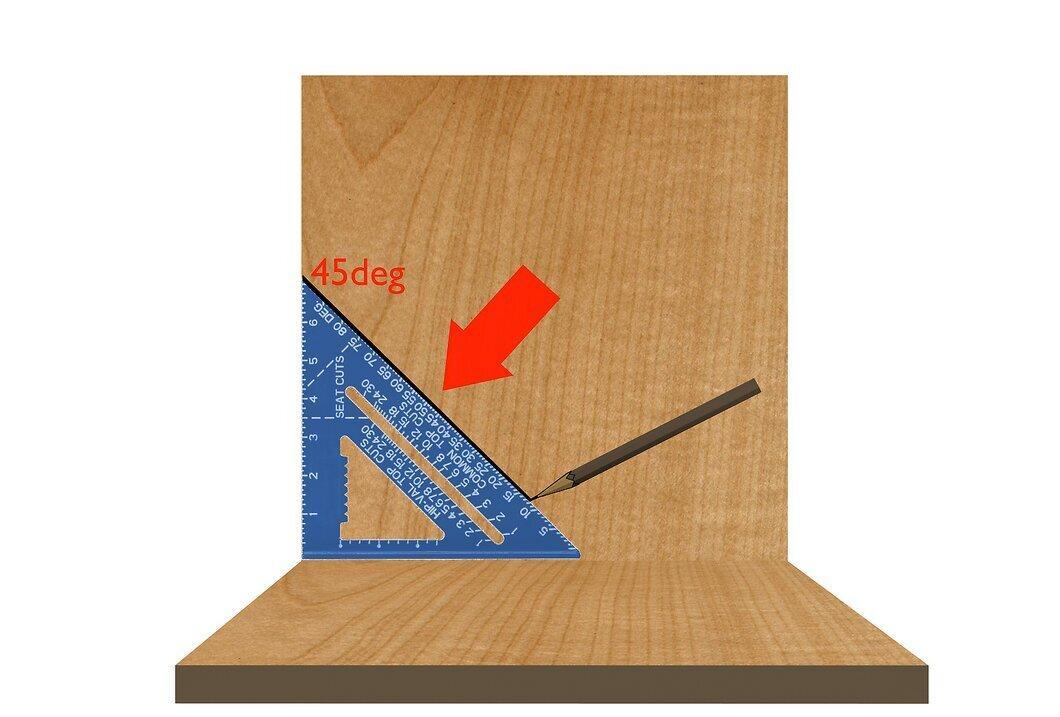

Step 3. Draw a Line at a 45-Degree Angle.
Now, draw a line at a 45-degree angle. Place the square side of the framing square against the edge of the board and mark the diagonal's position. Since the framing square is an isosceles triangle, the angle between the diagonal and any edge of the board will be 45 degrees.

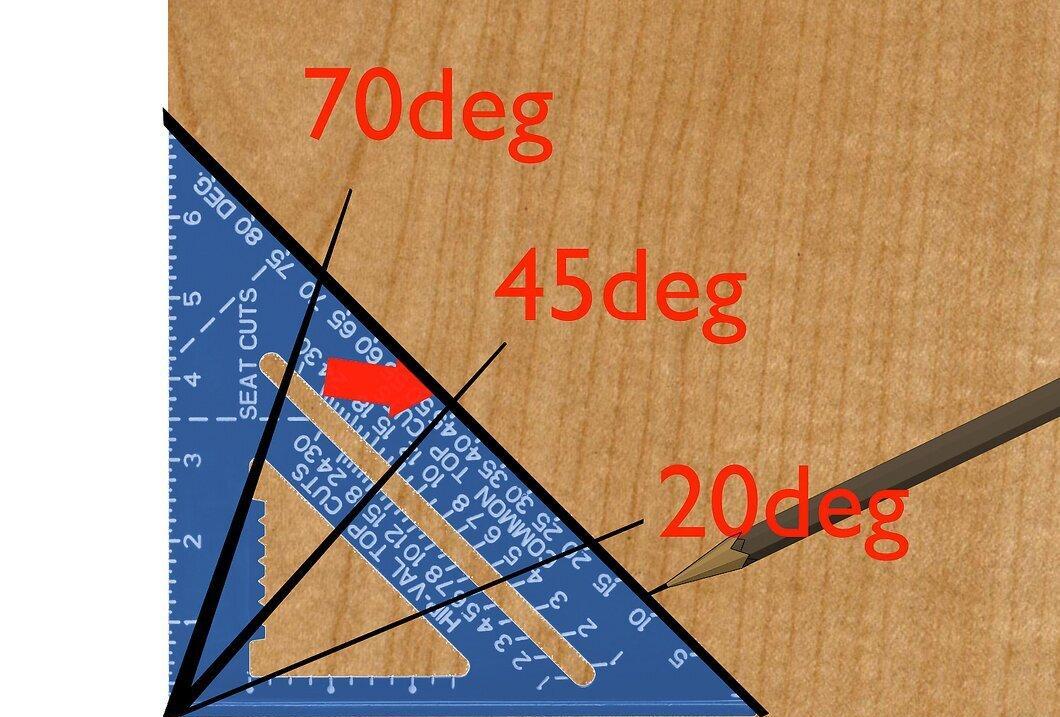

Step 4. Learn to Determine Angles with the Framing Square.
Master reading angles using the framing square. Position the square so that its 90-degree angle serves as a reference point. Along the hypotenuse, you will find angle markings – at intervals of 1, 5, or 10 degrees. Find the desired value, mark it with a pencil, and use the square side of the tool to draw a line.

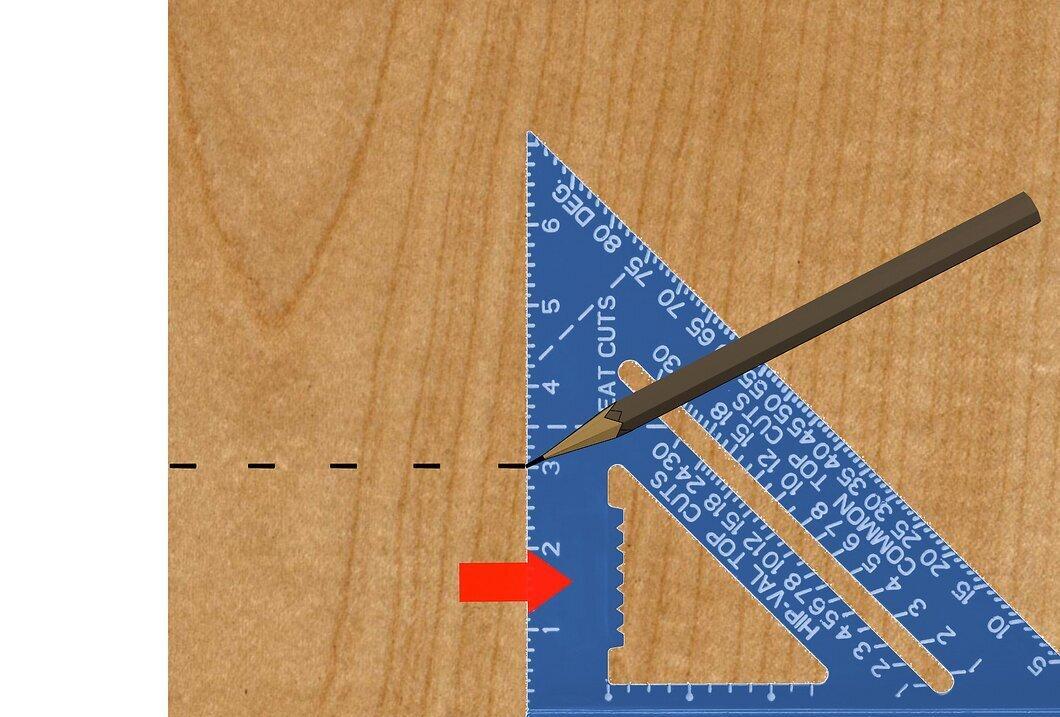

Step 5. Draw a Parallel Line.
Draw a parallel line. Lay the framing square against the edge of the board and measure the distance needed for the cut. Then, slide the framing square along the edge of the board, keeping the pencil at the same level to draw a line parallel to the edge of the board.

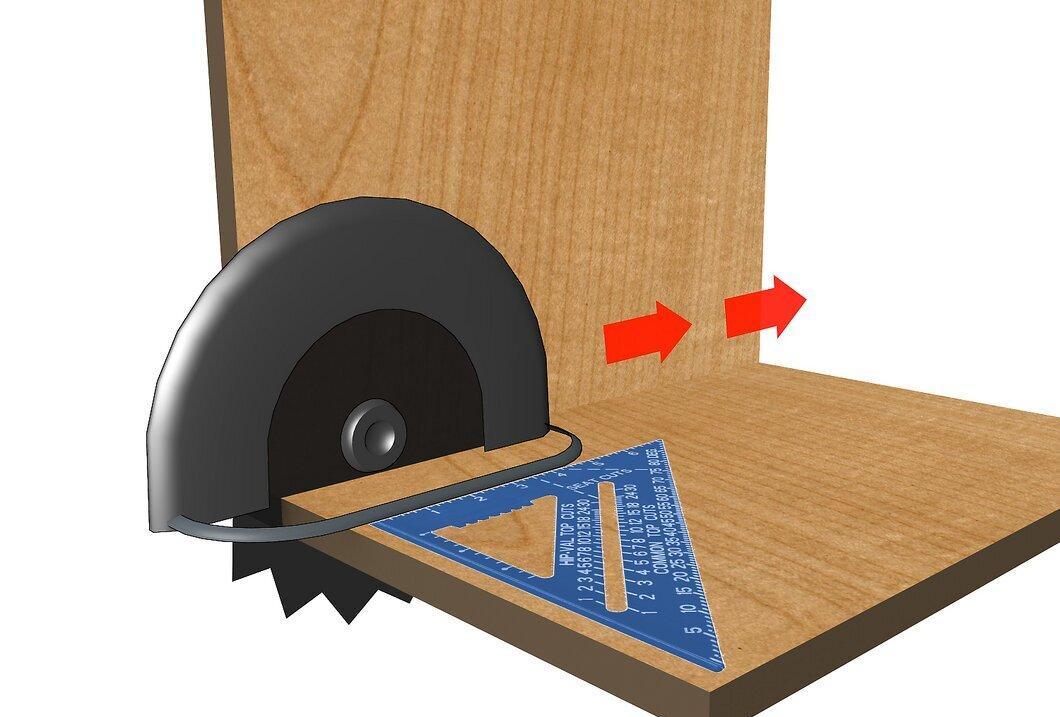

Step 6. Set the Direction for a Portable Circular Saw.
Determine the direction for the portable circular saw. Place the framing square on the board you plan to cut. Ensure that the saw's rail is parallel to one of the legs of the square, and begin cutting. The result will be very precise.
