The Ultimate Guide to Working with Fiberglass: Tips and Tricks

Once you've purchased a fiberglass kit, you need to understand how to use these materials properly to avoid potential issues. The first step is to create a mold, after which you can begin preparing the fiberglass and hardener. Working with fiberglass and polyester resin isn't as daunting if you follow the instructions and proceed step by step. Helpful information from wikiHow will guide you to achieve great results.

Preparing and Creating the Mold

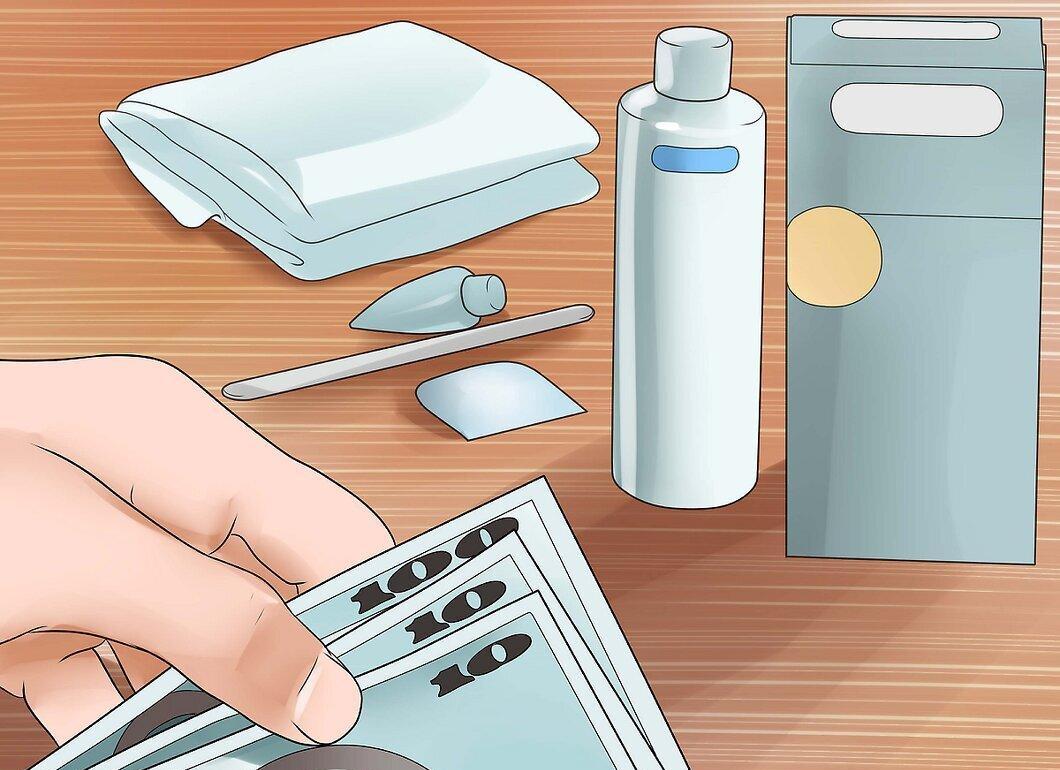

Step 1. Purchase a fiberglass kit

Step 1

Buy a fiberglass kit. It should include polyester resin, hardener (catalyst), and fiber to ensure the strength of the structure. Such kits can be found at hardware stores, supermarkets, and auto parts shops, and their volumes vary depending on your project.

  • What is fiberglass? Fiberglass is initially created from molten glass that is extruded through many small holes to form thin strands. These strands are coated with a special compound and gathered into bundles that create long fibers. When resin is added, it results in a strong, flexible fiberglass composite.[1] X Information source

Step 2. Determine the shape for your fiberglass

Step 2

Decide what shape you want your fiberglass to take. If you are creating a project like a simple box or bowl, you will need to assemble a mold or template for the liquid fiberglass to set in the desired configuration. If, for example, you are repairing a boat or car, it's advisable to use tape to outline the repair area and apply the resin directly onto it.

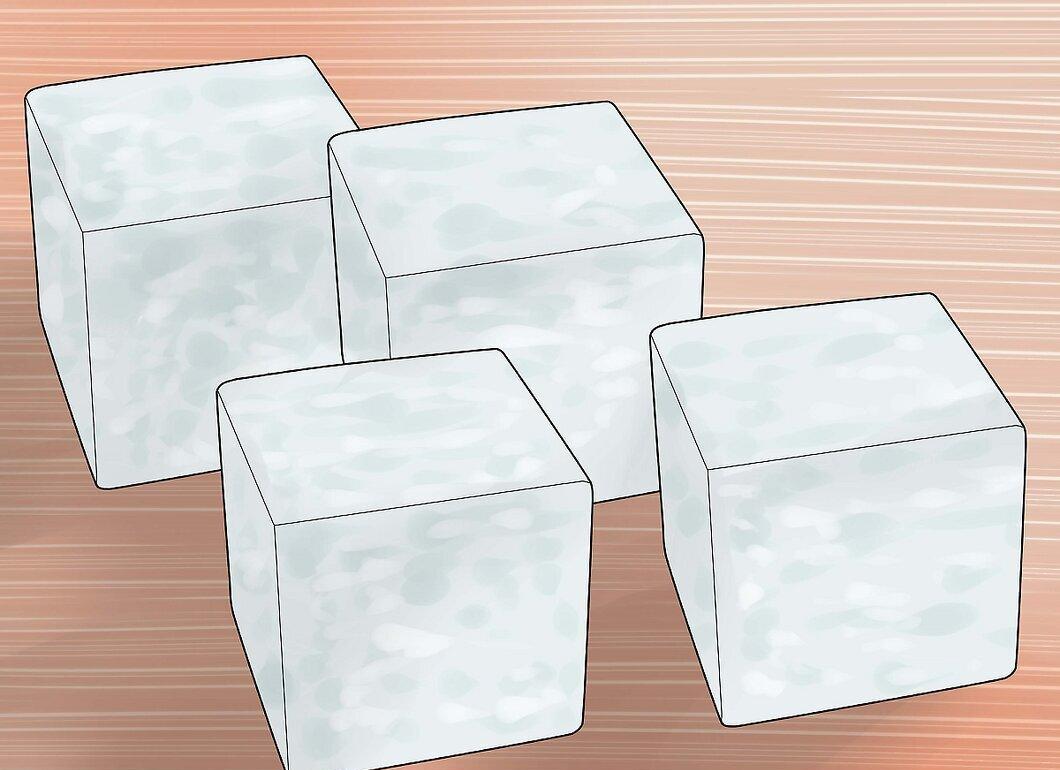

Step 3. Use foam or flexible materials for organic shapes

Step 3

To create molds with organic contours, blocks of foam or polystyrene are suitable. Just cut out the desired shape, such as a fountain base or bird feeder. Treat the material with wax paper, seal the seams with paraffin, and smooth out any rough spots.

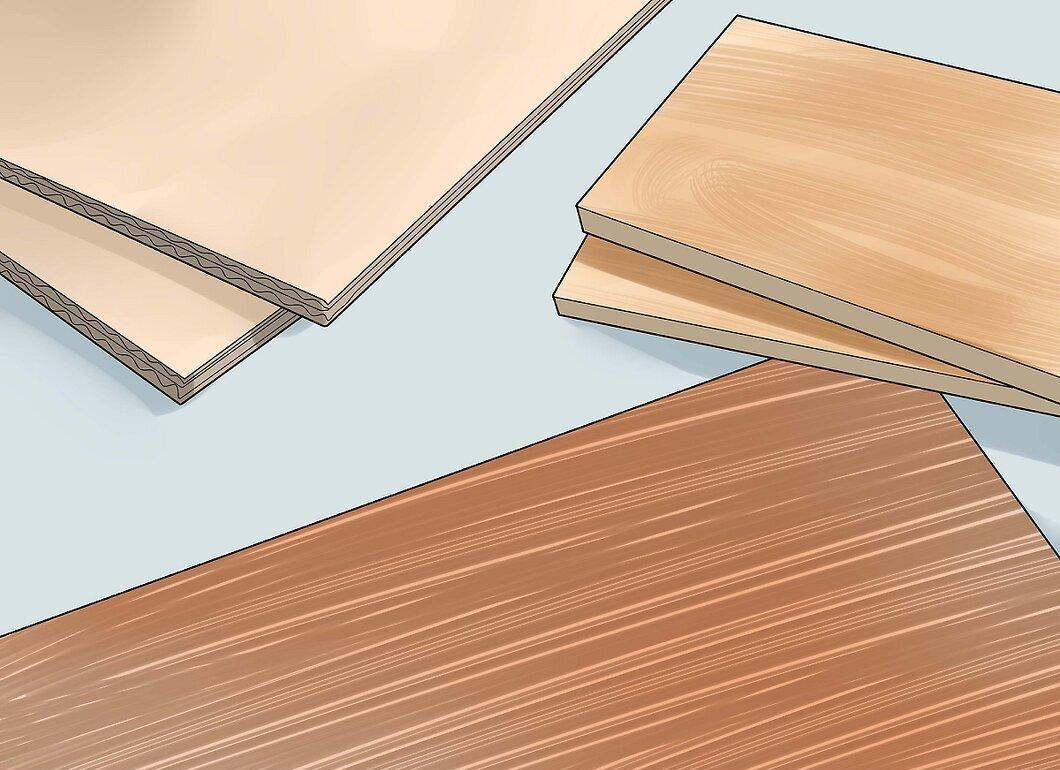

Step 4. Use rigid materials for geometric shapes

Step 4

For creating molds with straight angles, cardboard, plywood, MDF, or other rigid materials are ideal. These materials are perfect for larger projects, such as building a doghouse or boat. Be sure to coat the surface with wax or paraffin for easy removal of the product.

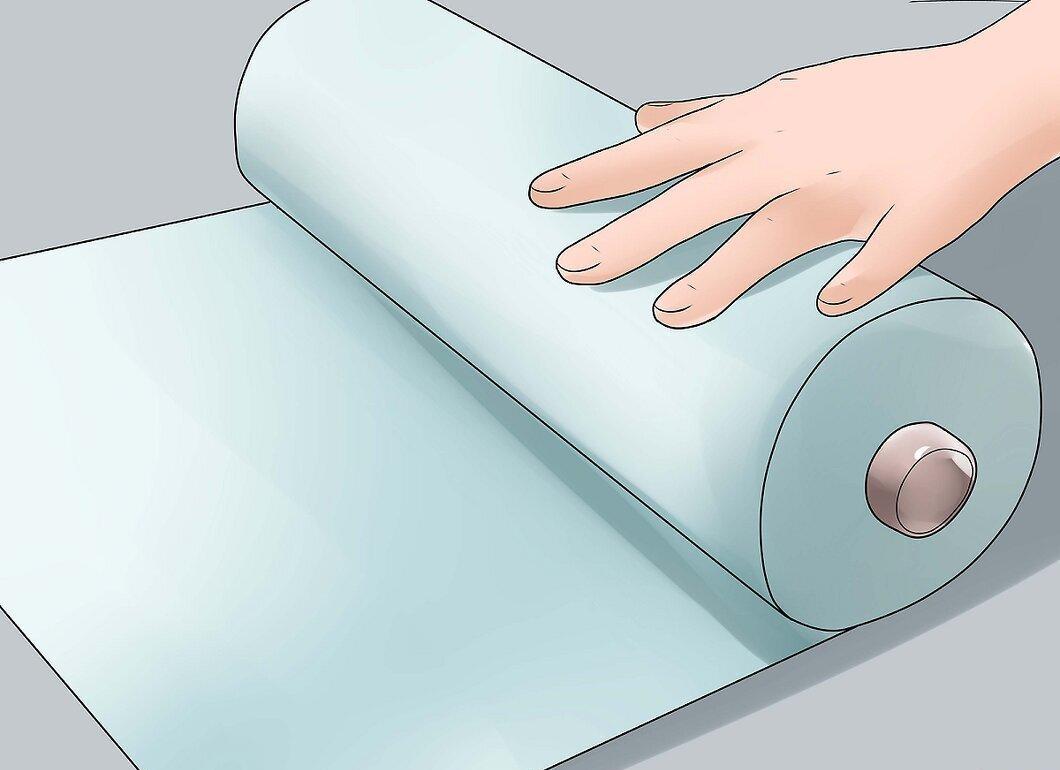

Step 5. Prepare the fiberglass mat or cloth

Step 5

Prepare the fiberglass mat or cloth, cut to the right size, leaving extra for seams and curves. Don't worry if the mold isn't perfect when dry – the material will become flexible when the resin is applied.

Preparing the Mixture and Applying the Fiberglass

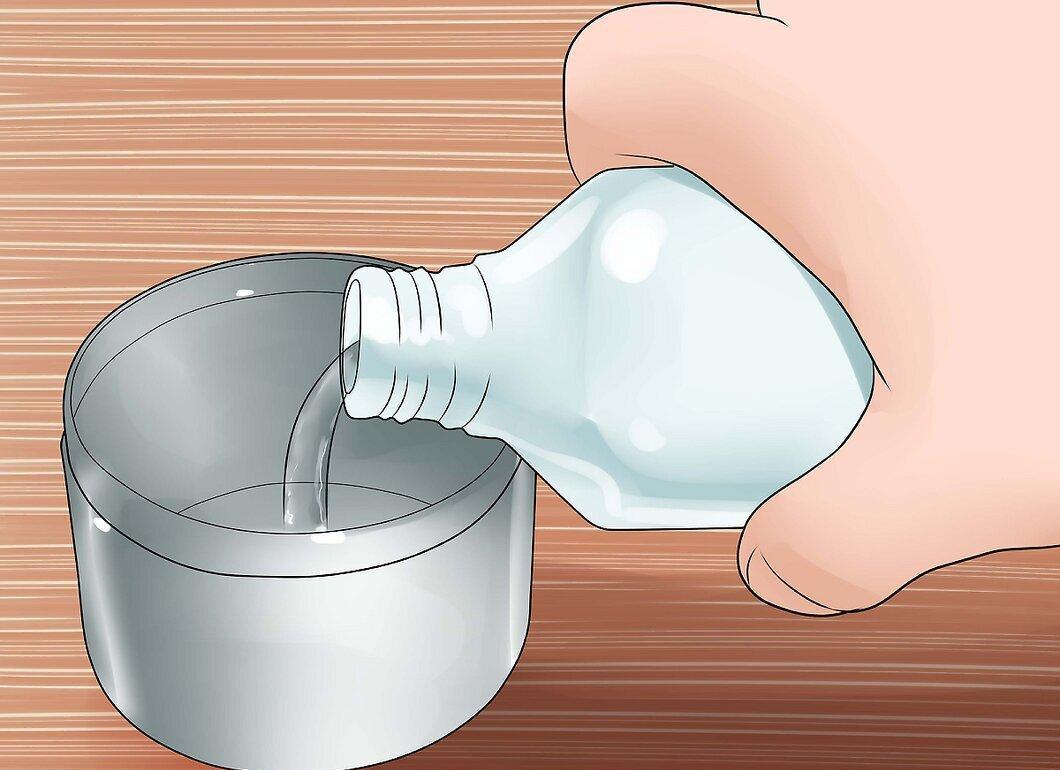

Step 1. Measure the required amount of resin

Step 1

Measure the necessary amount of resin in a metal container. This could be a large tin can or metal bowl, but it should be disposable. You can also use a clean plastic container, but be careful not to overheat the resin during curing.

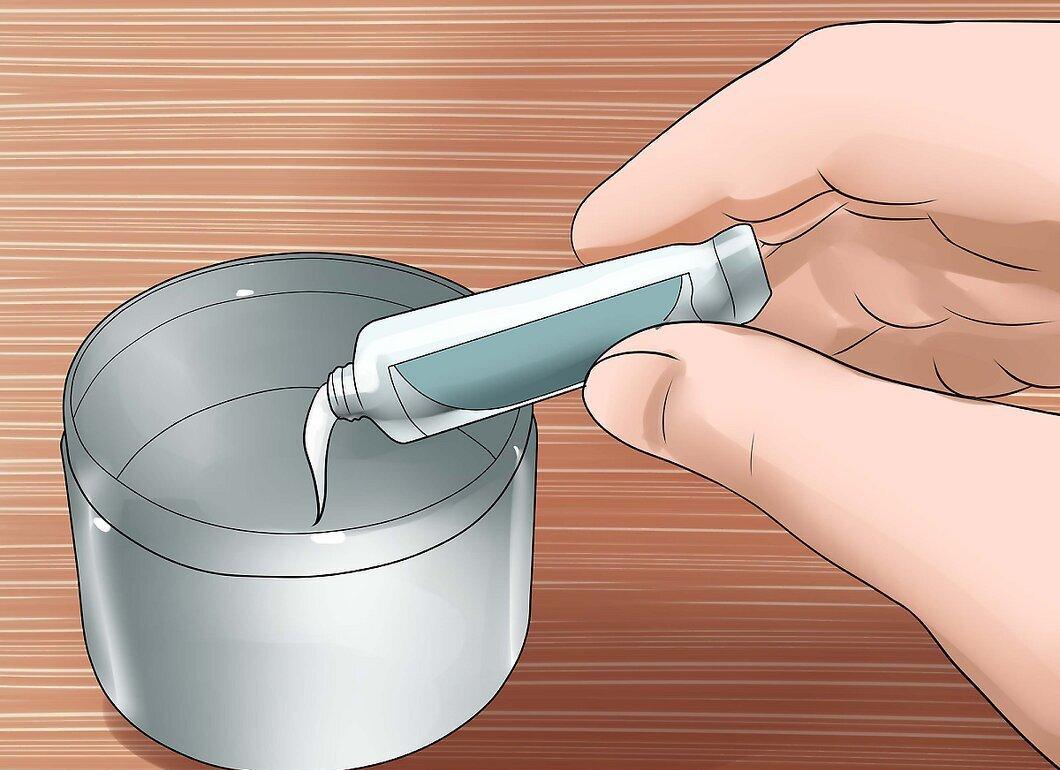

Step 2. Add the hardener

Step 2

Add the hardener according to the instructions on the package. You will find the resin in one container and the hardener in another. Use equal proportions or other ratios as required.

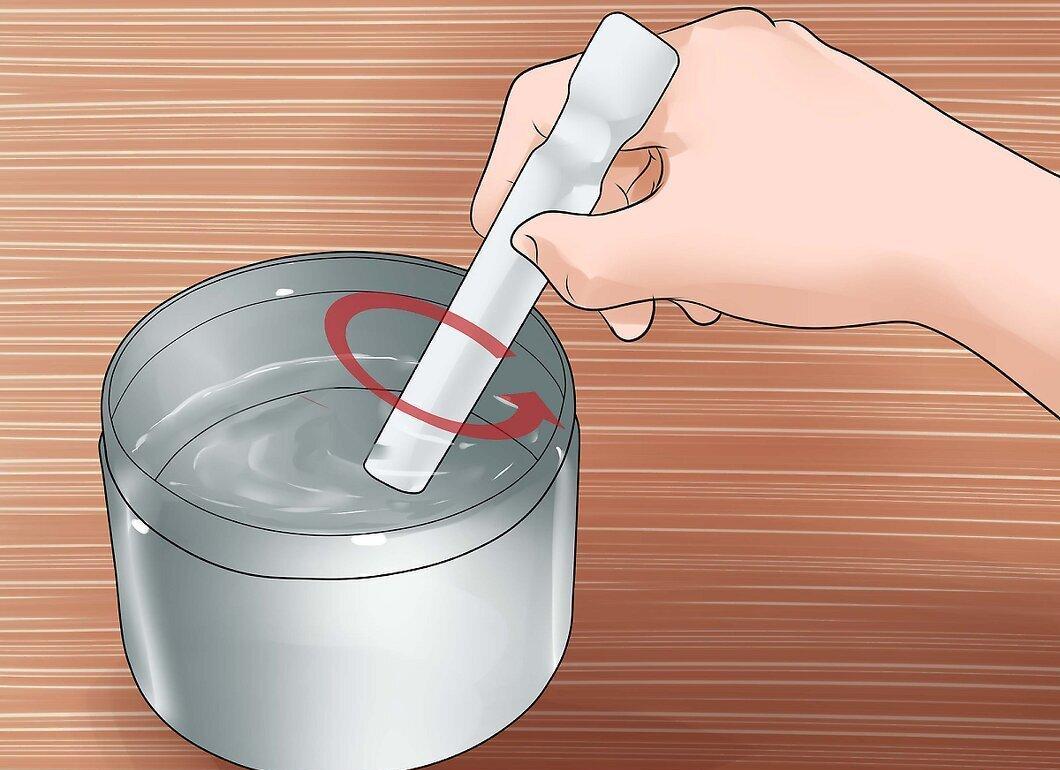

Step 3. Mix the components thoroughly

Step 3

Mix the mixture with a stick, paying attention to the mass in the center, bottom, and sides of the container.

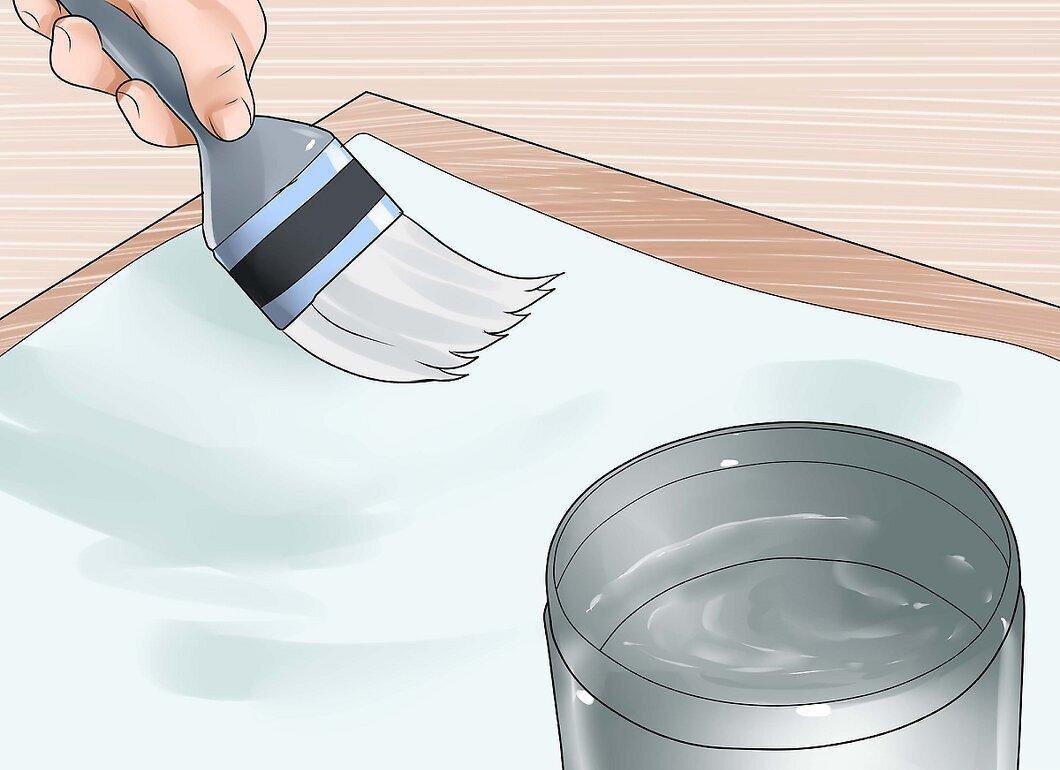

Step 4. Apply the mat to the mold

Step 4

Place the mat on the mold and evenly distribute the resin mixture using a disposable brush. As you spread it, the mat may seem to absorb the resin. Add more resin to achieve a thickness of 0.6 mm.

  • Be sure to apply resin to corners and weak points in the same amount as on flat surfaces. If the corners are not adequately covered, the fiberglass will be less durable.

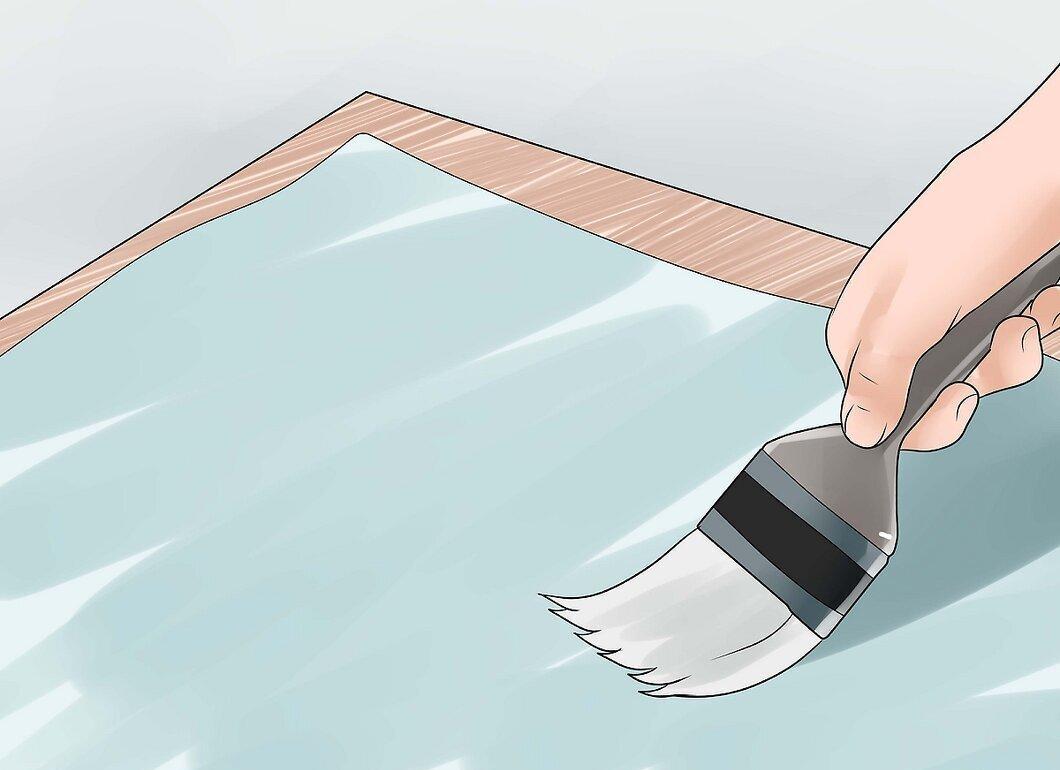

Step 5. Treat the entire surface of the mold

Step 5

Treat the entire surface of the mold with resin for an even coating. Keep working until you exhaust all materials.

Finishing Up

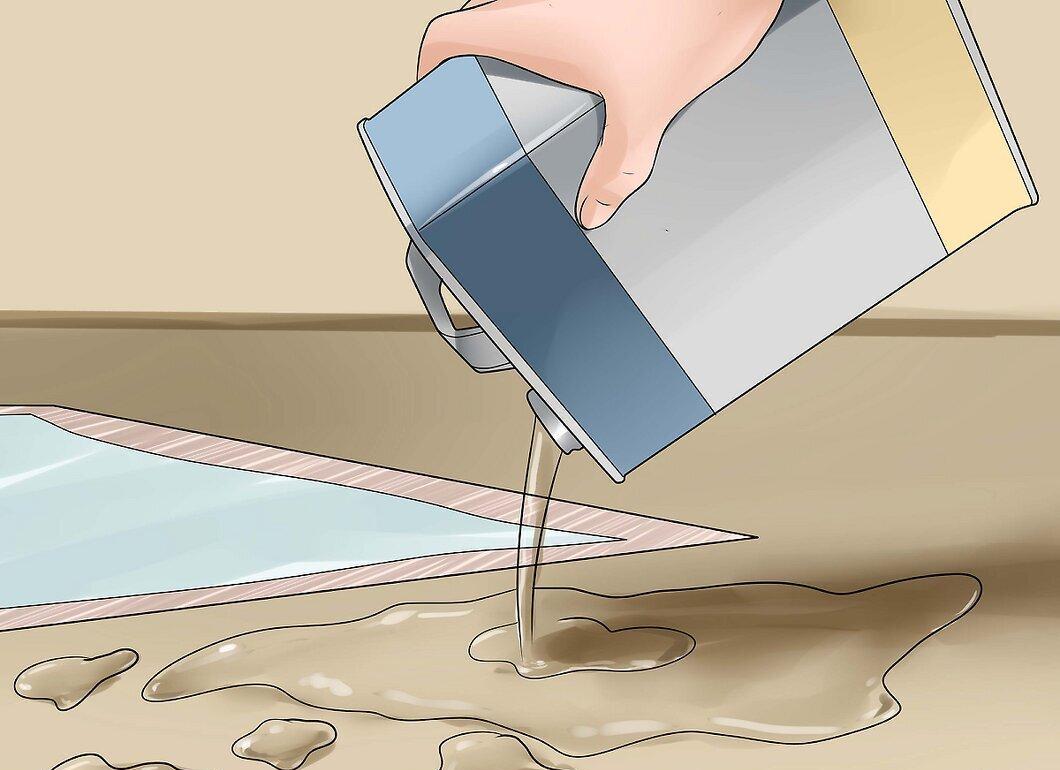

Step 1. Clean tools before curing

Step 1

Before the material cures, clean tools and any spills with acetone-based solvent. Acetone is excellent for cleaning fiberglass as it evaporates quickly. Avoid contact of acetone with sealants, plastics, or rubber.

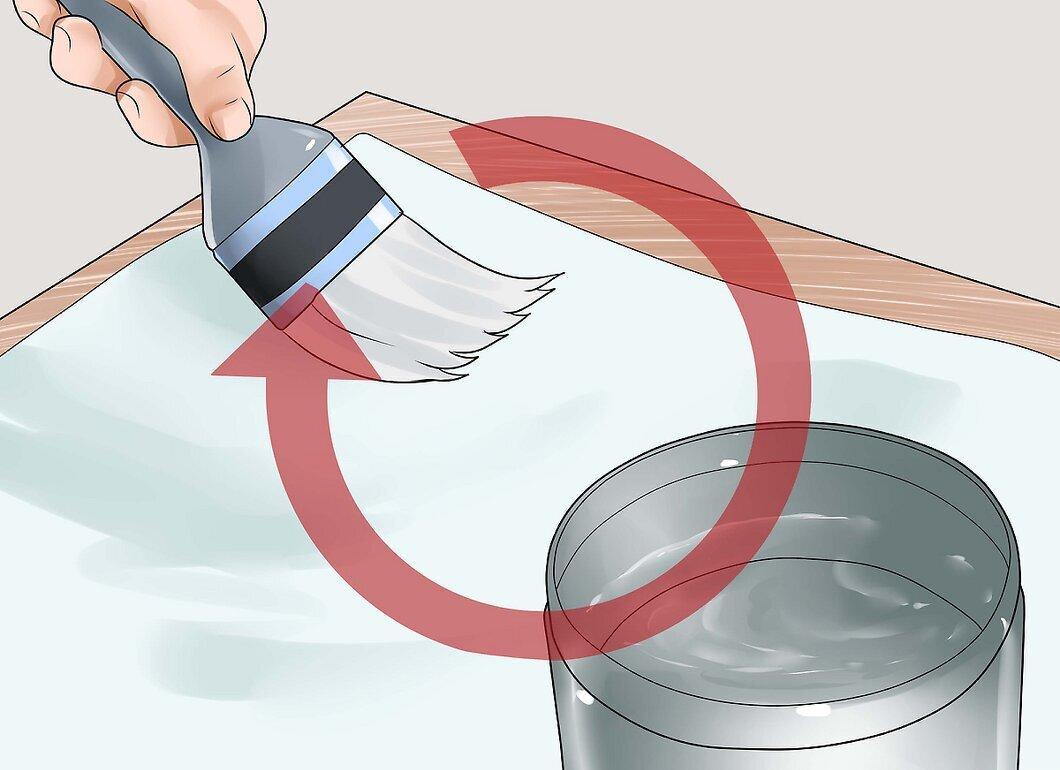

Step 2. Apply layers until the desired thickness is reached

Step 2

Continue applying layers of mat and resin until you achieve the required thickness. Typically, three to ten layers are needed for strength, depending on the project.

  • Try to lay the mats with different fiber orientations to enhance strength. Fiberglass fibers are strongest when oriented perpendicular to the axis.
  • Intermediate steps also require sanding rough areas where the mat emerges from the resin.

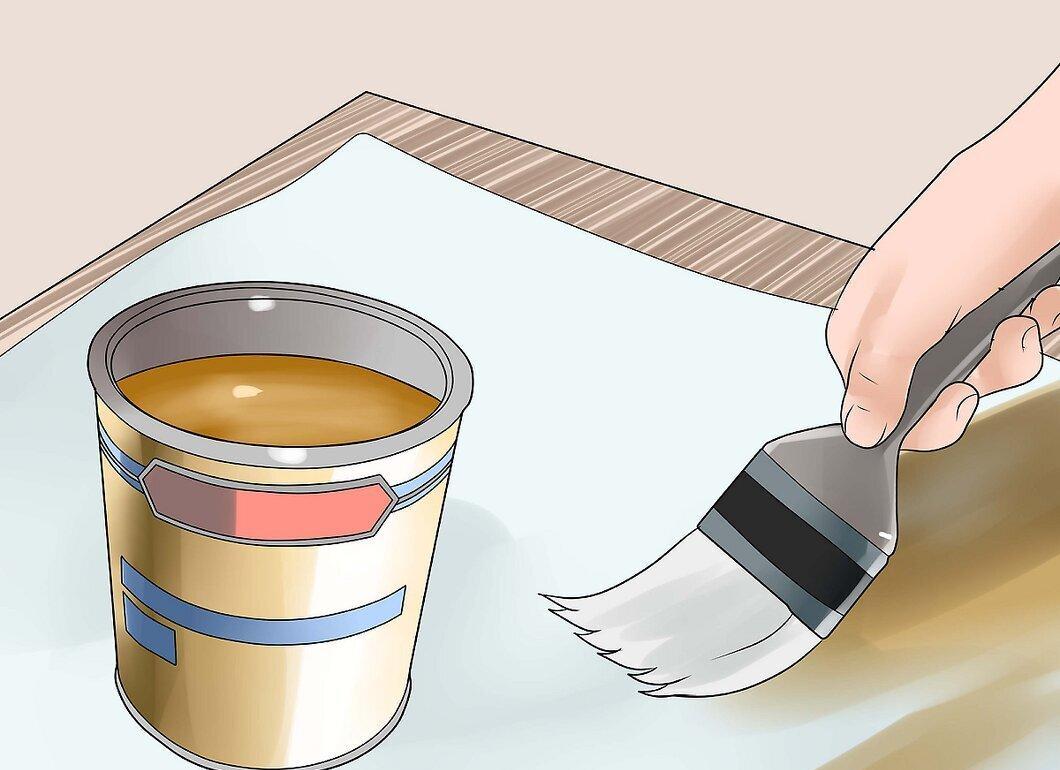

Step 3. Finish the project with a smooth layer

Step 3

Complete your project by adding a gel coat or smooth resin finish. Then, if desired, you can paint the product with polyurethane or alkyd enamel.

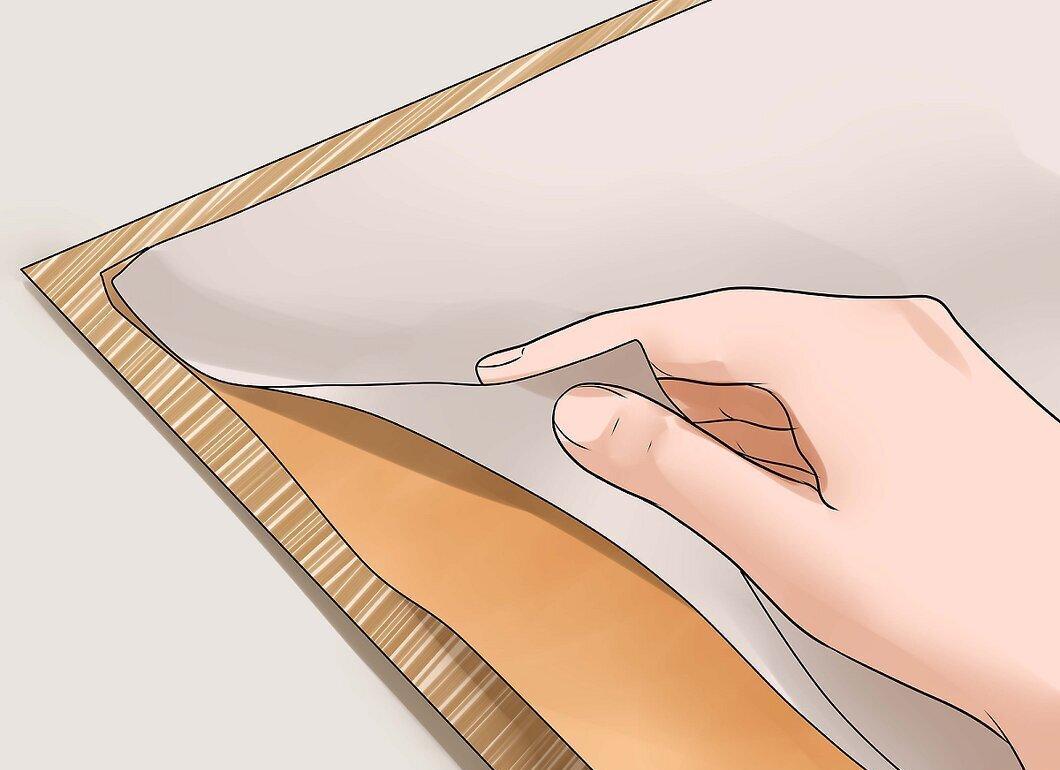

Step 4. Remove the fiberglass from the mold

Step 4

Remove the fiberglass from the mold. If the mold was covered with wax paper or paraffin, the product will easily peel away. The fiberglass will not stick to the wax.
